IFM OY006S | Light curtain | 910mm | Ø 14mm
The OY006S from ifm electronic is a safety light curtain designed to protect hazardous areas and control access to machinery and automated systems, ensuring a high level of safety for operators and industrial processes.
With a Type 4 safety classification according to IEC 61496, the OY006S is suitable for applications requiring the highest levels of protection, providing reliable finger detection and immediate machine shutdown in hazardous situations.
Its compact and robust aluminum housing allows easy integration into industrial environments, while the IP65/IP67 protection rating ensures resistance to dust and moisture.
The OY006S is ideal for robotic cells, automated machinery, industrial equipment, and applications requiring safe access monitoring, helping ensure compliance with international functional safety standards.
Highlights
Features:
Type 4 safety light curtain;
Designed for hazardous area and machine access protection;
14 mm resolution for finger protection;

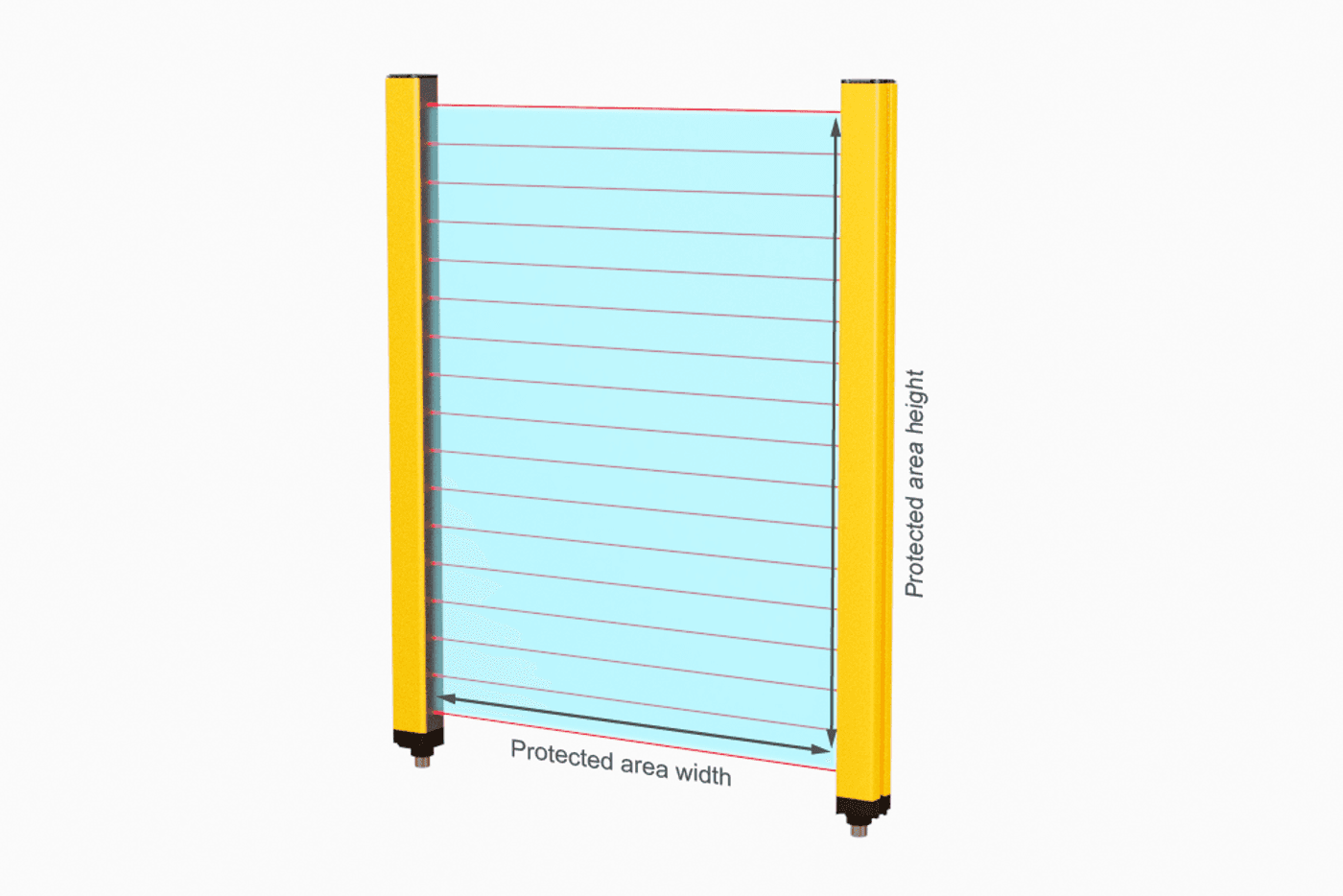

Protected height: 910 mm;
Operating range up to 6 m;
2 OSSD safety outputs (PNP);
Response time: 13 ms;
Infrared light source (950 nm);
24 VDC supply voltage;
IP65 / IP67 protection rating;
M12 connector interface;
Compact and durable aluminum housing;
Compliant with IEC 61496, ISO 13849-1 Category 4 / PL e and SIL 3.
